User’s Guide

Launching GTG

Docker

` wget https://raw.githubusercontent.com/MingChen0919/gtgdocker/master/launch_dev_env.sh sh launch_dev_env.sh `

This script will launch a docker container running the GTG app and another container running a Galaxy instance. Login to the Galaxy instance with username admin and password admin so that you can install tools from tool shed.

After running this script, you should see the following directories in your current directory:

` gtg_dev_dir/ ├── database ├── galaxy_tool_repository └── shed_tools `

Drupal Site

If you want to add the galaxy tool generator to an existing Drupal site….

Build Tool XML

GTG provides three ways to build a Galaxy XML file:

  • Aurora Galaxy Tool: this option starts with an template file for developing an Aurora Galaxy Tool.
  • Uploaded XML: starts with an uploaded XML.
  • From scratch: builds XML from scratch.
_images/create-tool-xml.png

Start from scratch

For comparison with another software for Galaxy tool development planemo <https://planemo.readthedocs.io/en/latest/> `_, I am going to use `an example from the planemo use cases. In this example we are going to use GTG to build this seqtk_seq_2.xml file.

0. Initialize an XML

  • Click Create Tool XML
  • Enter seqtk_seq_2.xml into XML file name
  • Select From scratch and click Save
_images/init_seqtk.png

1. Create tool component, which is the root component.

` <tool id="seqtk_seq" name="Convert to FASTA (seqtk)" version="0.1.0"> `

_images/root_component.png

Edit tool component attributes

_images/tool_attributes.png

2. Create tool->requirements component.

<requirements>
        <requirement type="package" version="1.2">seqtk</requirement>
</requirements>

Add tool->requirements component

_images/tool_requirements.png

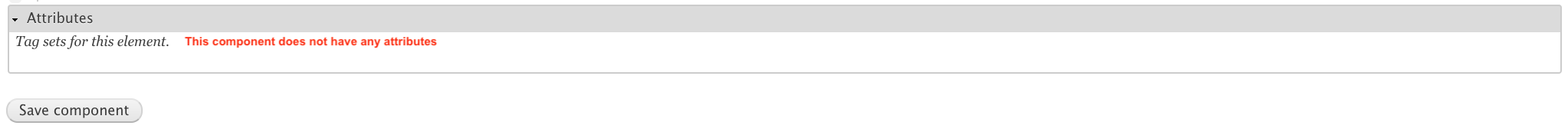

Edit tool->requirements component attributes. However, this component does not have any attributes.

_images/tool_requirements_attributes.png

Add tool->requirements->requirement component

_images/tool_requirements_seqtk.png

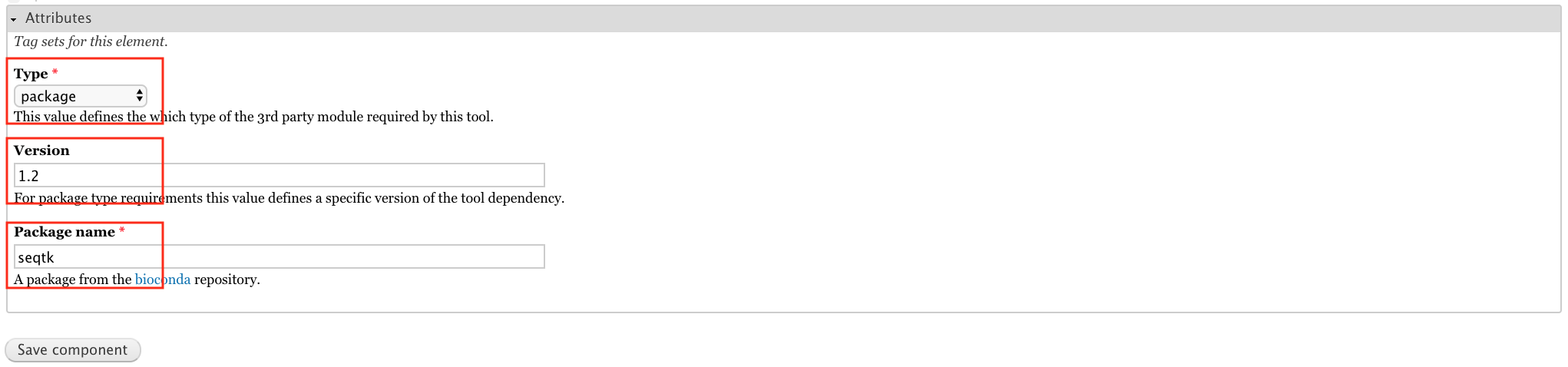

Edit tool->requirements->requirement component attributes.

_images/tool_requirements_seqtk_attributes.png

3. Create tool->command component

<command detect_errors="exit_code"><![CDATA[
    seqtk seq -a '$input1' > '$output1'
]]></command>

Add tool->command component

_images/tool_command.png

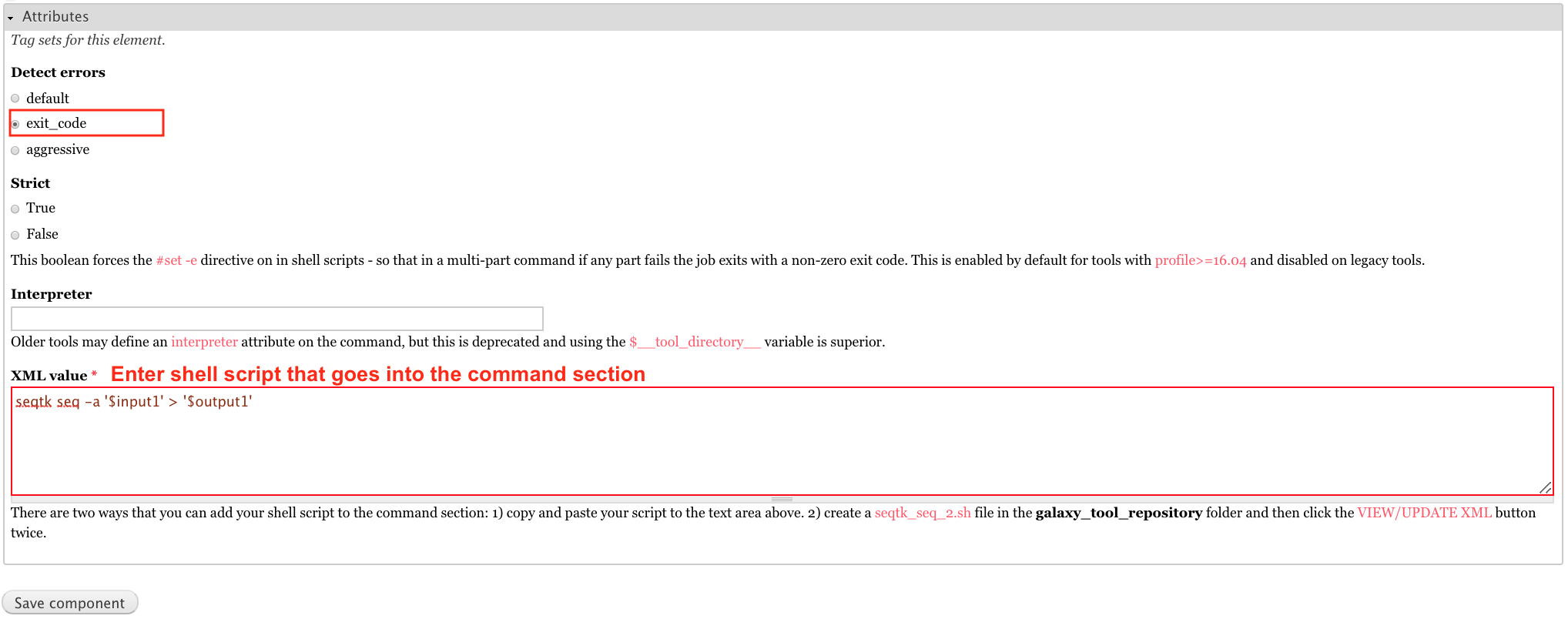

Edit tool->command component attributes.

_images/tool_command_attributes.png

The XML value field in the above web form is used to collect the shell script for the command section. However, there is an easier way to input shell script into the tool XML file. Go to the gtg_dev_dir/galaxy_tool_repository and create a .sh file. Put the shell script into this file, the content will be automatically integrated into the web form field when the XML webform page is being viewed (see the image below). The .sh file should have exact the same base name as the XML file. For example, in this example, the XML file is seqtk_seq_2.xml, then the .sh file should be seqtk_seq_2.xml.

_images/view_update_xml.png

4. Create tool->inputs component

  <inputs>
    <param type="data" name="input1" format="fastq" />
</inputs>

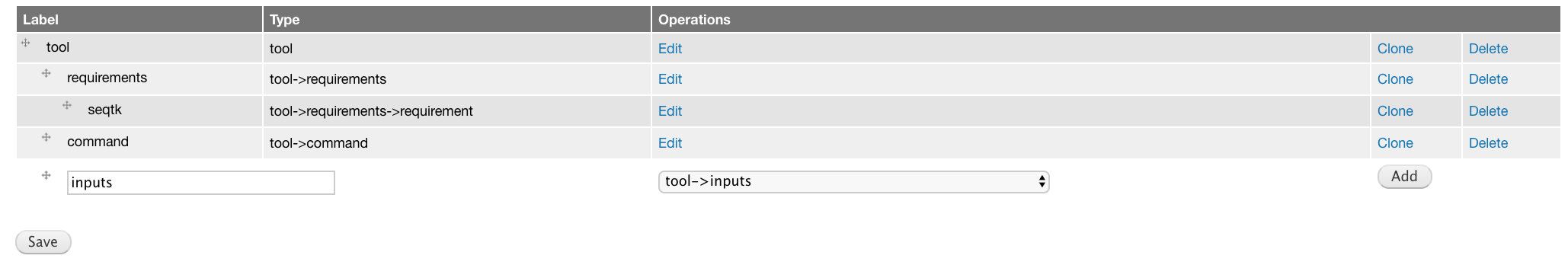

Add tool->inputs component

_images/tool_inputs.png

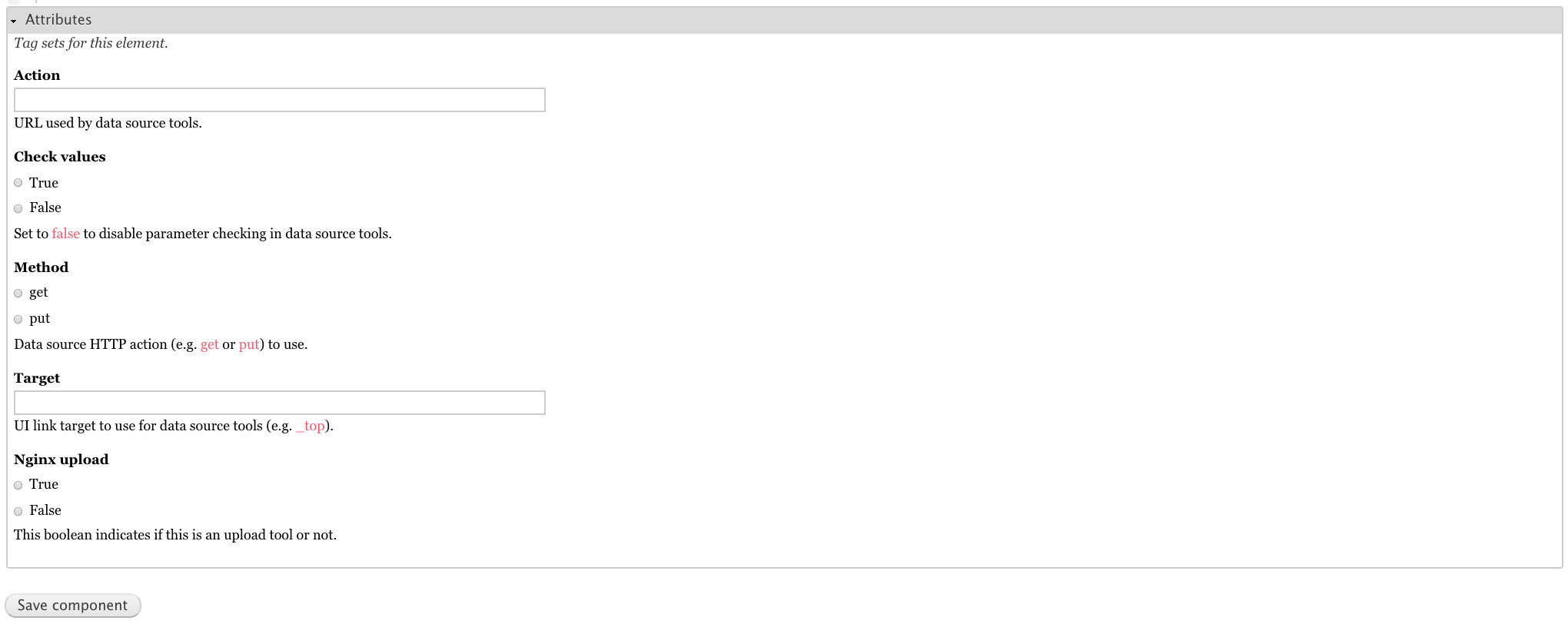

Edit tool->inputs component attributes

In this example, we don’t need to edit any attributes for this component.

_images/tool_inputs_attributes.png

Add tool->inputs->param(type: data) component

_images/tool_inputs_input_param_data.png

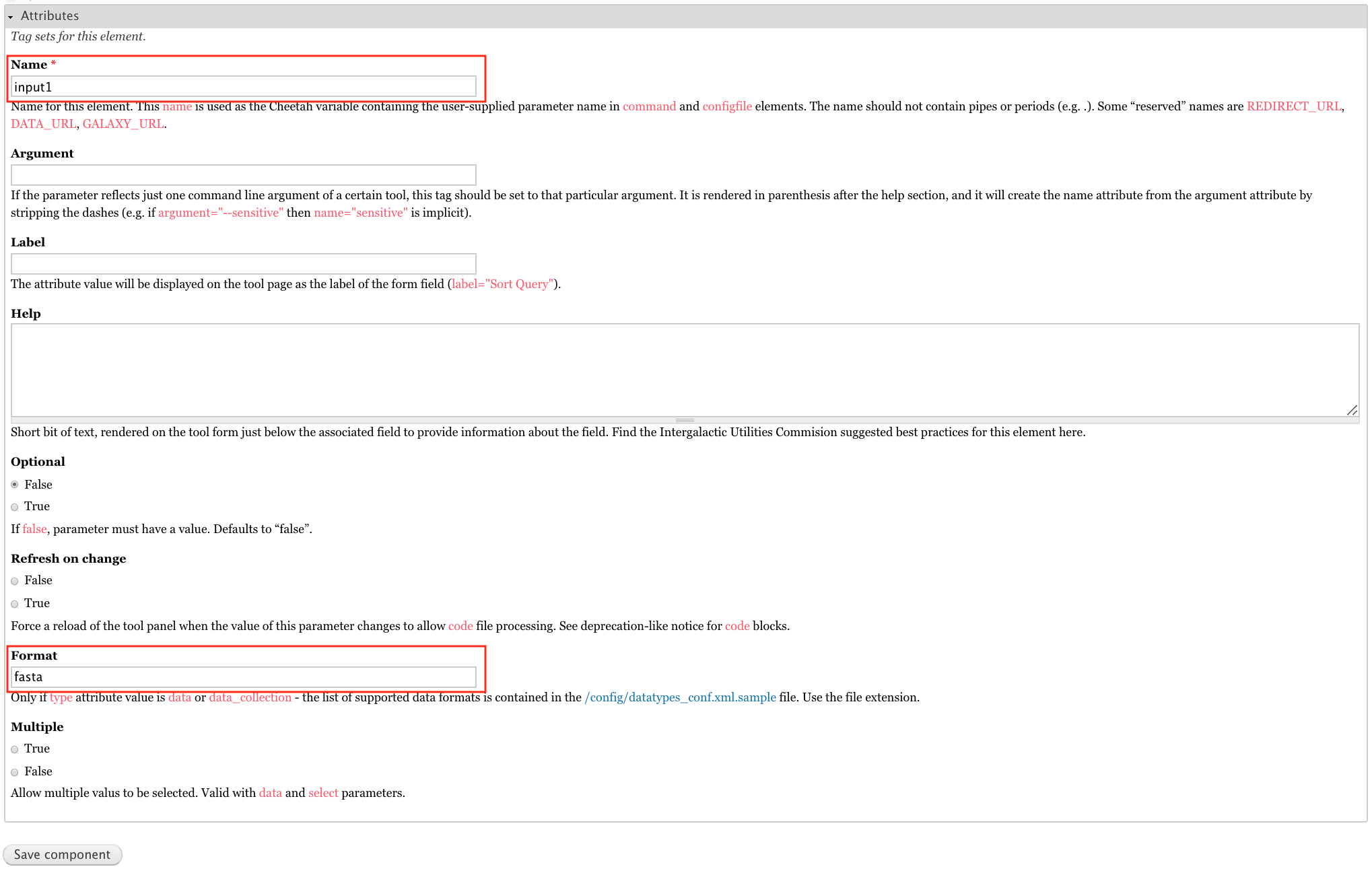

Edit tool->inputs->param(type: data) component attributes

_images/tool_inputs_input_param_data_attributes.png

5. Create tool->outputs component

<outputs>
    <data name="output1" format="fasta" />
</outputs>

Add tool->outputs component

_images/tool_outputs.png

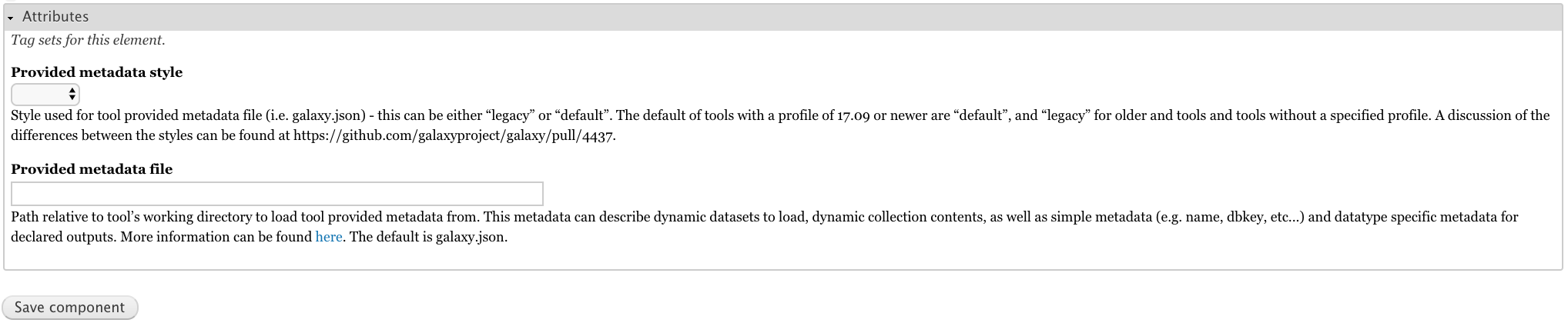

Edit tool->outputs component attributes

In this example, we don’t need to edit any attributes for this component.

_images/tool_outputs_attributes.png

6. Create tool->tests component

  <tests>
    <test>
        <param name="input1" value="2.fastq"/>
        <output name="output1" file="2.fasta"/>
    </test>
</tests>

Add tool->tests component

_images/tool_tests.png

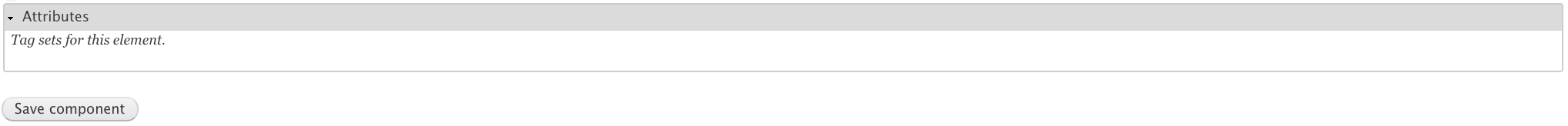

Edit tool->tests component attributes

This component does not have attributes

_images/tool_tests_attributes.png

Add tool->tests->test component

_images/tool_tests_test.png

Edit tool->tests->test component attributes

This component does not have attributes

_images/tool_tests_test_attributes.png

Add tool->tests->test->param component

_images/tool_tests_test_param.png

Edit tool->tests->test->param component attributes

_images/tool_tests_test_param_attributes.png

Add tool->tests->test-output component

_images/tool_tests_test_output.png

Edit tool->tests->test-output component attributes

_images/tool_tests_test_output_attributes.png

7. Create tool->help component

<help><![CDATA[

Usage:   seqtk seq [options] <in.fq>|<in.fa>
Options: -q INT    mask bases with quality lower than INT [0]
         -X INT    mask bases with quality higher than INT [255]
         -n CHAR   masked bases converted to CHAR; 0 for lowercase [0]
         -l INT    number of residues per line; 0 for 2^32-1 [0]
         -Q INT    quality shift: ASCII-INT gives base quality [33]
         -s INT    random seed (effective with -f) [11]
         -f FLOAT  sample FLOAT fraction of sequences [1]
         -M FILE   mask regions in BED or name list FILE [null]
         -L INT    drop sequences with length shorter than INT [0]
         -c        mask complement region (effective with -M)
         -r        reverse complement
         -A        force FASTA output (discard quality)
         -C        drop comments at the header lines
         -N        drop sequences containing ambiguous bases
         -1        output the 2n-1 reads only
         -2        output the 2n reads only
         -V        shift quality by '(-Q) - 33'
         -U        convert all bases to uppercases
         -S        strip of white spaces in sequences
    ]]></help>

Add tool->help component

_images/tool_help.png

Edit tool->help component attributes

_images/tool_help_attributes.png

8. Create tool->citations component

<citations>
        <citation type="bibtex">
@misc{githubseqtk,
  author = {LastTODO, FirstTODO},
  year = {TODO},
  title = {seqtk},
  publisher = {GitHub},
  journal = {GitHub repository},
  url = {https://github.com/lh3/seqtk},
}</citation>
    </citations>

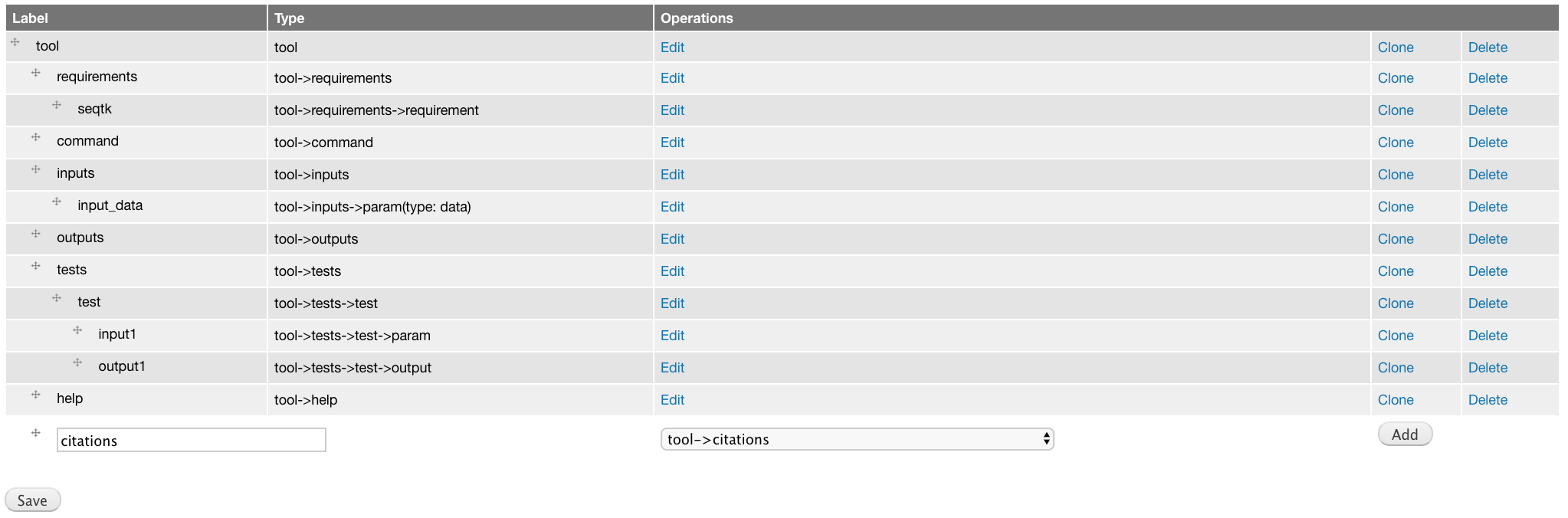

Add tool->citations component

_images/tool_citations.png

Edit tool->citations component attributes

This component does not have attributes

_images/tool_citations_attributes.png

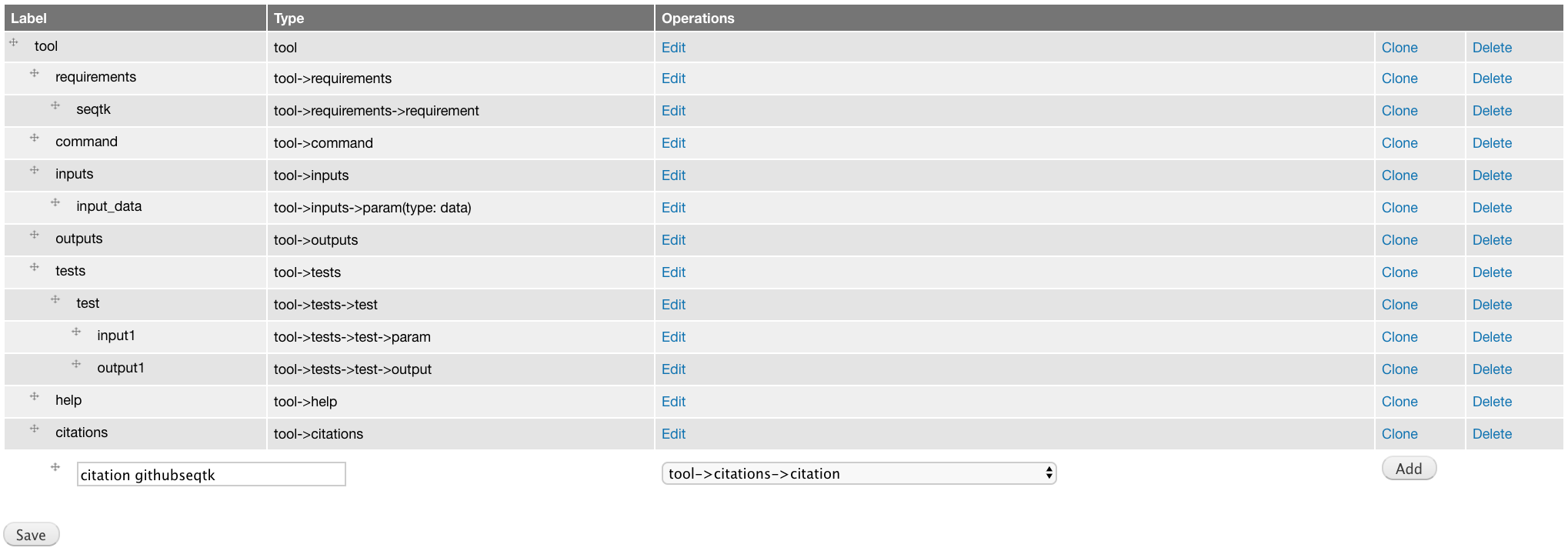

Add tool->citations->citation component

_images/tool_citations_citation.png

Edit tool->citations->citation component attributes

_images/tool_citations_citation_attributes.png

9. View the complete XML file

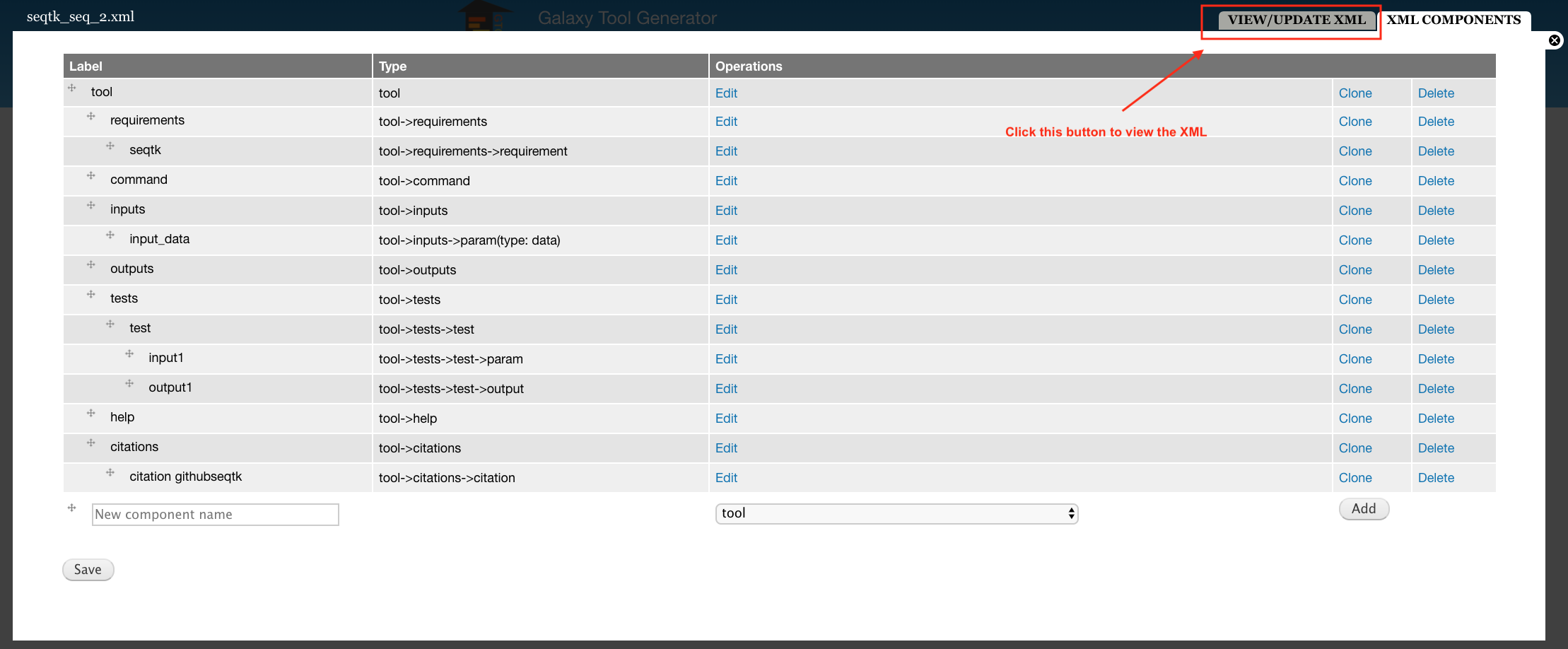

Now you have created all the components for building the seqtk_seq_2.xml file, you can view the XML page to see how it look like on GTG. Of course, you can view the XML page any time you want. It doesn’t have to be after you have added all the components.

_images/complete_components.png

Below is the XML page.

_images/xml_page_view.png

Build tool repository

You have just created the seqtk_seq_2.xml file in GTG. However, this file is not in the gtg_dev_dir/galaxy_tool_repository directory yet. We need to the XML file into it, and any other non-XML files if there is any.

Click the Build Tool Repository tab and select any XML files that you want to add to the gtg_dev_dir/galaxy_tool_repository directory. And then click the Update XMLs in galaxy_tool_directory folder. This is also the button that you use to add an updated XML to the directory.

_images/build_tool_repository.png

You should be able to see the seqtk_seq_2.xml file in the gtg_dev_dir directory.

_images/gtg_dev_dir.png

### Add non-XML files

If this tool requires any other non-XML files (for example, test files, scripts, etc.), you can add them directory to the gtg_dev_dir/galaxy_tool_repository directory.

### Publish tool to Test ToolShed

Once we have the XML file(s) and all other non-XML files in the gtg_dev_dir/galaxy_tool_repository, we can publish the tool to Test ToolShed or ToolShed with GTG.

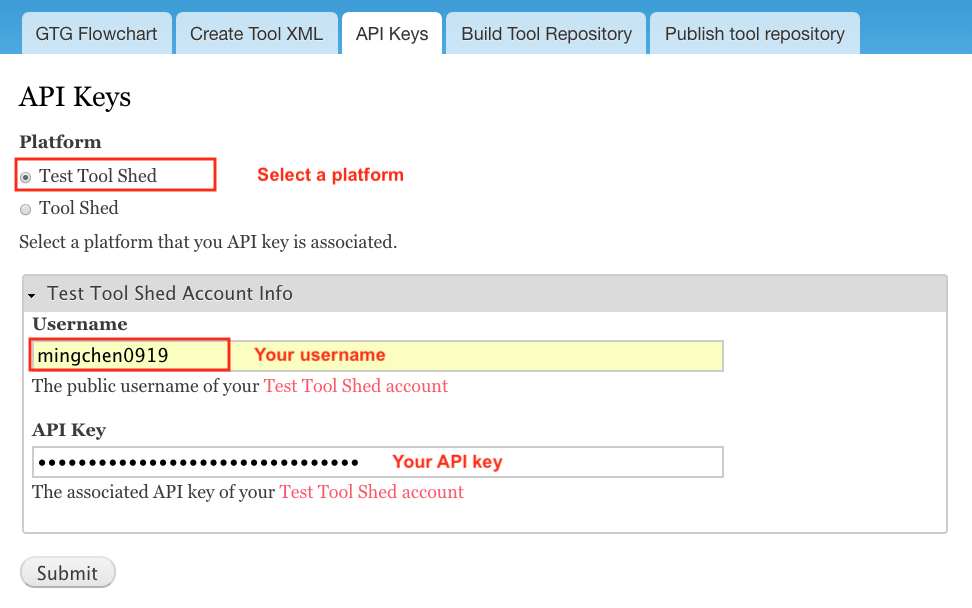

First, we need to add the API key.

_images/api_key.png

Then we can publish the tool through the interface below.

_images/publish_tool.png

### Install and test Tool in Galaxy

The next step would be to install and test the tool in the connected Galaxy instance. If the tool needs more work, you can use GTG to update the XML file.

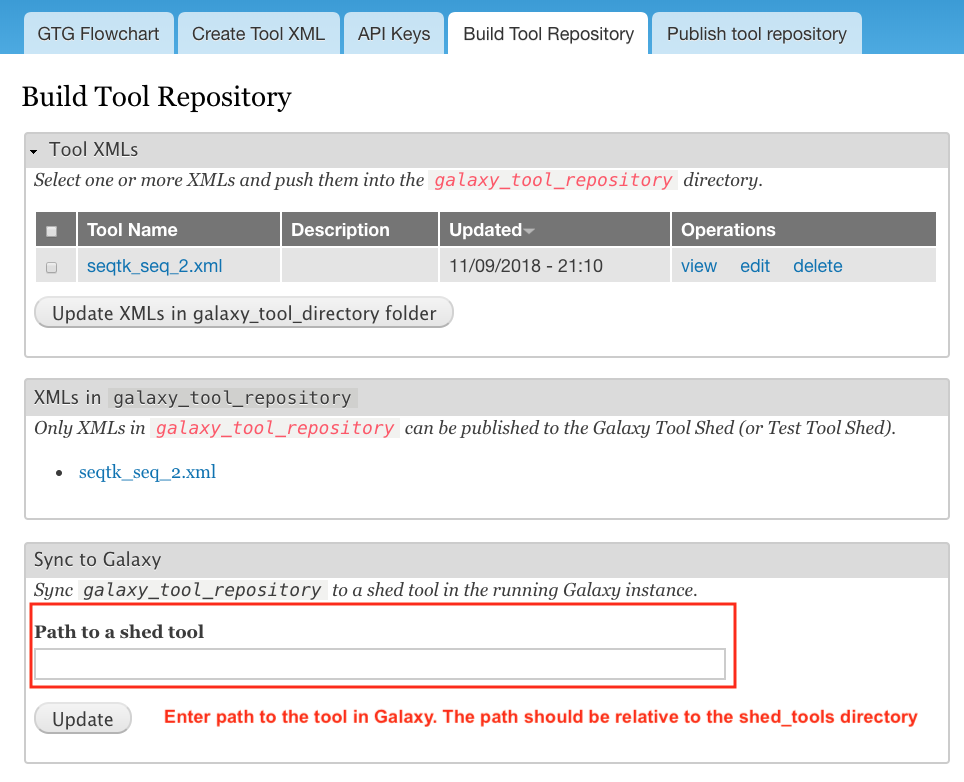

The following interface is used to link the tool in GTG with the same tool installed in Galaxy so that the update will be automatically synced to Galaxy for testing.

_images/sync_tool.png

Everytime you update XML file in Galaxy, you will need to restart Galaxy to integrate the updates. Below is the command to restart Galaxy.

docker exec -it gtg_galaxy sh -c 'supervisorctl restart galaxy:'

You expect to see the following stdout.

galaxy:galaxy_nodejs_proxy: stopped
galaxy:handler0: stopped
galaxy:handler1: stopped
galaxy:galaxy_web: stopped
galaxy:galaxy_nodejs_proxy: started
galaxy:galaxy_web: started
galaxy:handler0: started
galaxy:handler1: started
